| Nazwa: | Odwirować | Model: | BR-Mini-4G |
|---|---|---|---|
| Silnik: | Silnik z magnesami trwałymi DC24V DC | Tryb sterowania: | Napęd bezpośredni PI |
| Maksymalna prędkość obrotowa: | 4000 obr./min, ±3% | Maksymalna względna siła odśrodkowa: | 990×g |
| Najszybszy czas przyspieszania: | ≤3s | Najszybszy czas hamowania: | ≤3s |

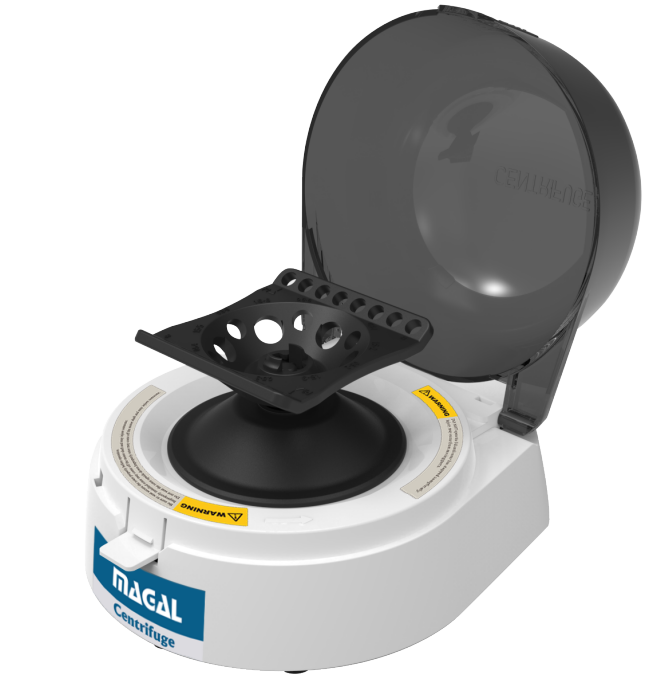

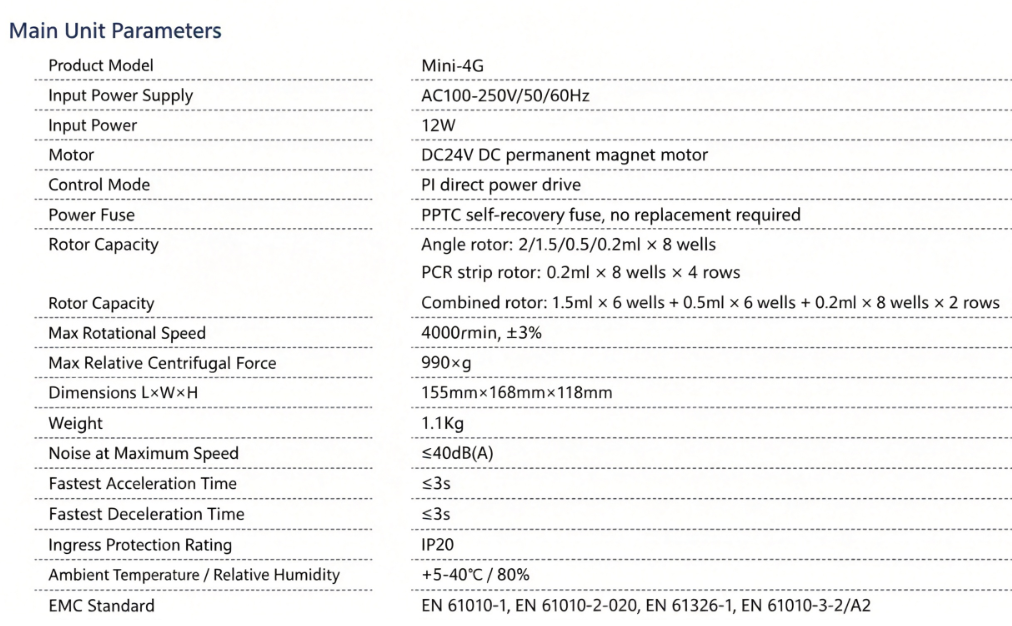

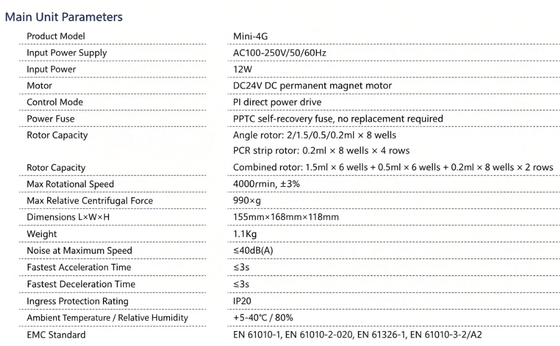

Centrifuge BR-Mini-4G Input Power Supply: AC100-250V/50/60Hz Input Power: 12W Motor: DC24V DC permanent magnet motor Control Mode: PI direct power drive Power Fuse: PPTC self-recovering fuse, no replacement required Rotor Capacity: Angle rotor: 2/1.5/0.5/0.2ml × 8 wells PCR strip rotor: 0.2ml × 8 wells × 4 rows Combined rotor: 1.5ml × 6 wells + 0.5ml × 6 wells + 0.2ml × 8 wells × 2 rows Max Rotational Speed: 4000r/min, ±3% Max Relative Centrifugal Force: 990×g Dimensions (L
